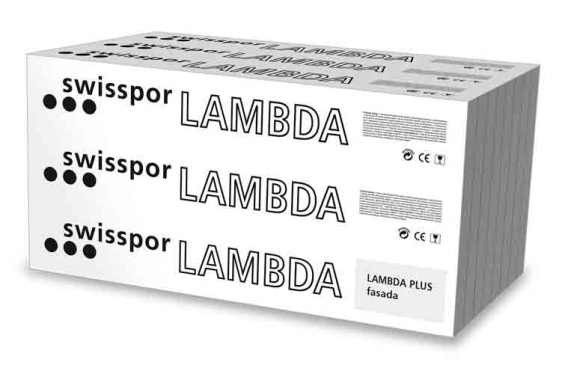

Swisspor Lambda plus fasada 032 T&G 12cm (2,35 m2 pack)

Swisspor Lambda Plus Fasada 032 – High-Performance Graphite Styrofoam for External Insulation

Swisspor Lambda Plus Fasada 032 is a premium graphite styrofoam designed for external insulation of building facades. Its exceptional thermal conductivity (λ = 0.032) and high-quality composition make it one of the leading choices for energy-efficient construction. Swisspor has established itself as a leader in the graphite styrofoam segment in Poland, with this product consistently outperforming competitors over several years.

Key Features:

• Thermal Conductivity (λ): 0.032 W/mK for superior insulation.
• Material Composition: Enhanced polystyrene with graphite, providing excellent insulating properties and a distinctive gray color.
• Durability: Meets the highest standards in external insulation performance.
• Versatile Thickness Options: Popular sizes include 10 cm, 12 cm, 15 cm, and 20 cm. Custom sizes (e.g., 13 cm, 14 cm, 16 cm, and 18 cm) are also available and packed accordingly.
• Certification: Complies with EN 13163, ensuring quality and performance.

Applications:

1. External Wall Insulation (ETICS):
   Designed for thermal insulation in facade systems, ensuring excellent energy efficiency.

2. Architectural Solutions:
   Ideal for projects requiring thinner insulation boards (10–15 cm) while maintaining thermal performance.

3. Building Types:
   Suitable for both residential and commercial applications, including energy-efficient and passive buildings.

Product Packaging:

• Standard Thicknesses:

  • 10 cm (3 m² per package).
  • 12 cm (2.5 m² per package).
  • 15 cm (2 m² per package).
  • 20 cm (1.5 m² per package).

• Custom Thicknesses: Sizes like 13 cm and 16–18 cm are packed in smaller volumes to accommodate unique needs.

Performance Benefits:

• Energy Efficiency: Superior lambda value ensures reduced heat loss and energy savings.
• Ease of Installation: Boards are lightweight and easy to handle, with flexibility for various project requirements.
• Certified Quality: Tested and approved by the Polish Main Office of Building Control (GUNB), confirming compliance with declared performance properties.

Installation Guidelines:

1. Weather Conditions: Ensure the temperature of the air, substrate, and materials is between +5°C and +25°C during installation.
2. Sun Protection: Protect the boards from direct sunlight using scaffold mesh or tarpaulins.
3. Adhesive Application: Use elastic, fiber-reinforced adhesive, applying it around the edges of the board and in several spots on the surface to cover 60% of the board area.
4. Doweling: Use dowels with extended expansion zones and reinforced polyamide pins for ceramic blocks. Ensure an anchoring depth of at least 8 cm.
5. Reinforcement Mesh: Use 160 g/m² fiberglass mesh with 4×4 mm grid for added strength.

Why Choose Swisspor Lambda Plus Fasada 032?

• Proven performance with consistent positive reviews from both professionals and homeowners.
• High-quality material that combines excellent insulation with ease of use.
• Backed by GUNB testing, guaranteeing compliance with technical specifications.
• A trusted product in Poland's top tier of EPS insulation materials for over a decade.

Swisspor Lambda Plus Fasada 032 is the ideal solution for high-performance facade insulation, ensuring optimal energy efficiency and durability for modern construction projects.
